PNEUMATIC MUFFLER
SILVENT SIS-05

Item number: 70050269097, 70050169097

  • 1/2" Pneumatic muffler with indicator

SILVENT SIS-05: Silvent's new series of pneumatic mufflers offers extremely effective noise reduction, compact size and a unique and patented warning system. The muffler's warning indicator gives early warning that backpressure in the system is too high. Maintenance personnel can both see and hear (by an elevated sound level) that it is time to replace the muffler before costly and unnecessary operation disturbance occurs. Since the warning indicator extends when it is pressed out, it is also possible to use electronic monitoring to stop the machine for muffler replacement. These pneumatic mufflers provide noise reduction of 30-35 dB(A). Silvent offers four different dimensions.

Technical specifications

See basic information about the technical data. Read more

Instructions for use

Read Silvent Group General Instructions for Use before you install the product.

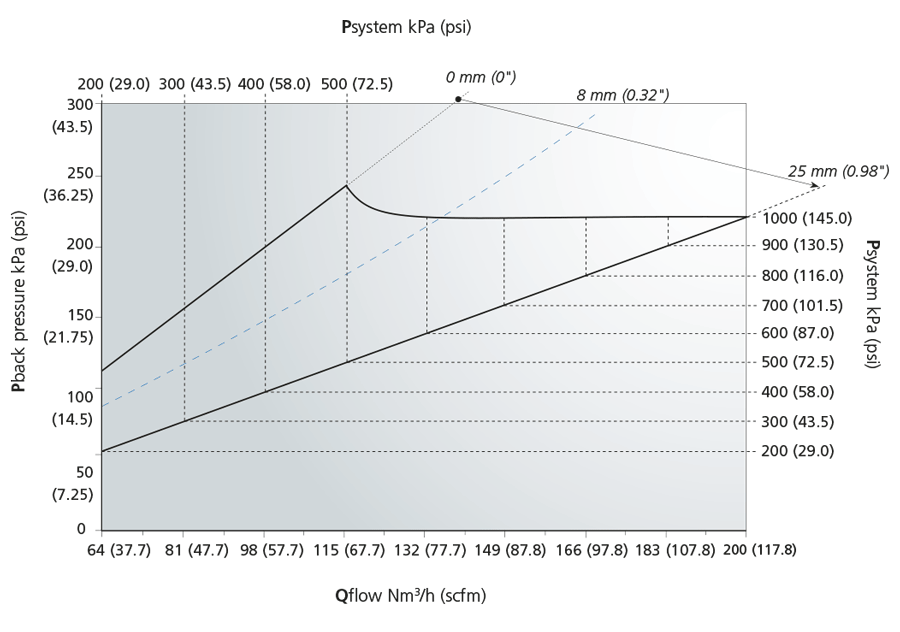

Flow chart for pneumatic muffler SIS-05

The diagrams show flows and back pressure for different system pressures for each SIS pneumatic muffler. The values in italics state in mm (inches) how much the silencer is triggered. Values range from zero to a maximum recommended triggered mode. where the warning indicator becomes visible.

Flow chart for SIS-05.

*Continuous operation over 1/2″ valve with hose diameter Ø 12/10 mm (Ø 0.472″).

Warning indicators are the solution

Silvent's pneumatic mufflers in three stages.

1. The image shows the muffler in its normal position.

2. The muffler after a certain amount of clogging.

3. The warning mark indicates that the muffler needs replacing.

Pneumatic muffler SILVENT SIS-02 – SILVENT SIS-05
