Our air nozzles, air knives and air blow guns are designed to reduce sound levels and improve the efficiency of blowing with compressed air.
Blowing with compressed air is common in industry when cleaning, drying, cooling, sorting or transporting objects. Silvent air nozzles are used in fixed installations and make efficient use of compressed air. All Silvent air nozzles feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Air knives are most commonly used to blow away liquids, grime, airborne debris, etc. from surfaces or objects. Silvent air knives create a broad and effective flow of air that produces a pneumatic scraping effect without mechanical contact. All Silvent air knives feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Manual blowing with compressed air is common in industry when cleaning, drying or cooling objects. Silvent air blow guns make efficient use of compressed air. All Silvent air blow guns feature the optimal combination of high blowing force, low energy consumption and low noise levels, at the same time as they are ergonomically designed for professional use.
Some industries and processes need more blowing force than a regular air blow gun can generate. Therefore, Silvent has developed air blow guns with high blowing force. The blowing force ranges from twice as strong up to 30 times stronger than a regular air blow gun. All Silvent air blow guns are safe, quiet and efficient, and are developed for professional use.
The noise from compressed air valves is extremely hazardous, but equipping valve discharge ports with pneumatic mufflers often causes operational disturbances. Silvent pneumatic mufflers have integrated warning indicators. The technology basically entails that the pneumatic muffler itself sets the optimal combination of flow capacity and noise suppression thanks to the dynamic internal filter, which subsequently minimizes operational disturbances and eliminates clogging.
To optimize blowing, it is sometimes necessary to be able to make pressure or blowing angle adjustments, for example. In other cases protection against airborne debris may be needed. Silvent has different types of accessories for easily performing various blowing tasks, optimally and safely.
Item number: AP02000000

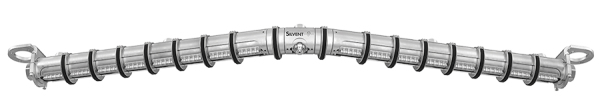

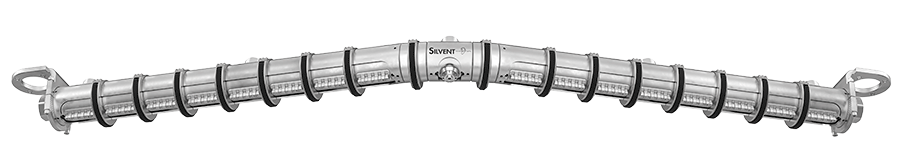

The SILVENT AirPlowTM 2.0 was designed for demanding blowing applications and is a development of Silvent’s previous plow model. The new patented design allows optimization of the blowing angle and direction, and simplifies installation and adjustment of the blowing application. The air plow is also equipped with the latest blowing technology to increase efficiency and reduce energy consumption.
The air plow is mainly used in rolling mills for steel, aluminum and other metals, but can also be used in other applications where high blowing force and a wide contact area are required. The air plow creates a V-shaped air jet that efficiently blows liquid and loose particles away from the surface.
The latest generation of the Silvent air plow has been improved in several areas. Updates are based on practical experience from applications and product development. The SILVENT AirPlowTM 2.0 boasts unique new air nozzles, which together with the patented design, optimize the plow to provide the best possible results.
See basic information about the technical data. Read more
Read Silvent Group General Instructions for Use before you install the product.

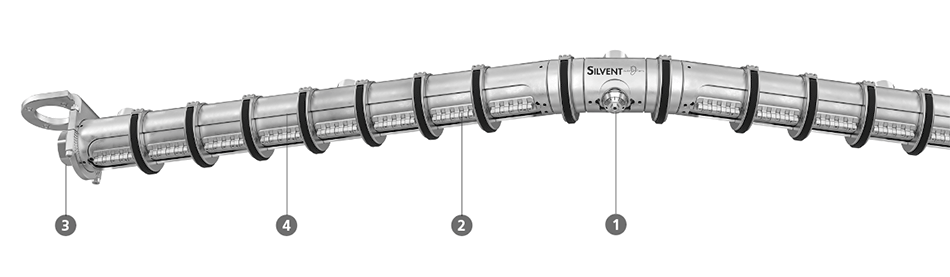

1. Divider nozzle APDN15
Using the latest manufacturing technology, we have designed a divider nozzle with separate Laval holes in three directions. This results in a pronounced V-shaped air jet that boosts plowing force with better energy efficiency than before.

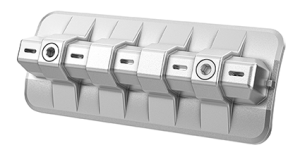

2. Blow-off nozzle APN05
This blow-off nozzle was designed to achieve a flat, wide air jet for increased energy efficiency and a lower sound level. The nozzle’s low-profile provides for small installation dimensions and a protected position in the overall design.
3. Integrated swivel connections
All connections on the air plow have a swivel function, which means the connection nipple can rotate freely in relation to the rest of the structure. This makes it easier to install connection pipes or hoses.
The air plow is modular internally, making it easier to configure sections for different cover widths. This means the air blowing through each section can be turned on or
off, which is very useful for energy optimization in rolling mills where the required cover width varies.
