AIR NOZZLE
SILVENT 703 L

Item number: 07030169400, 07030269400

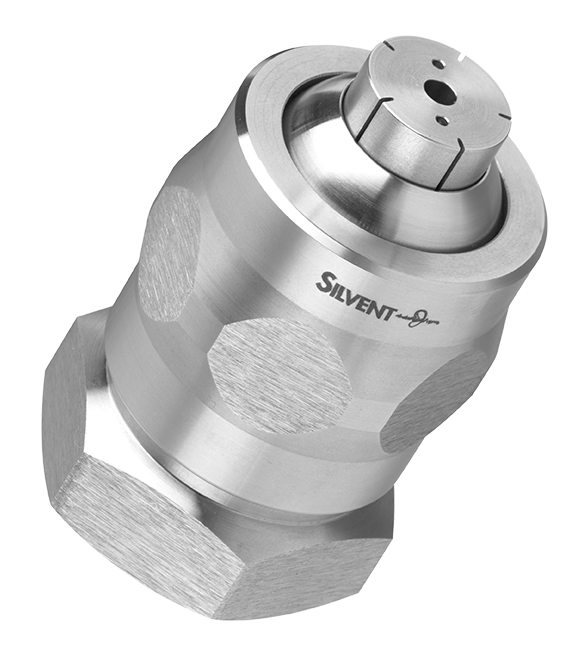

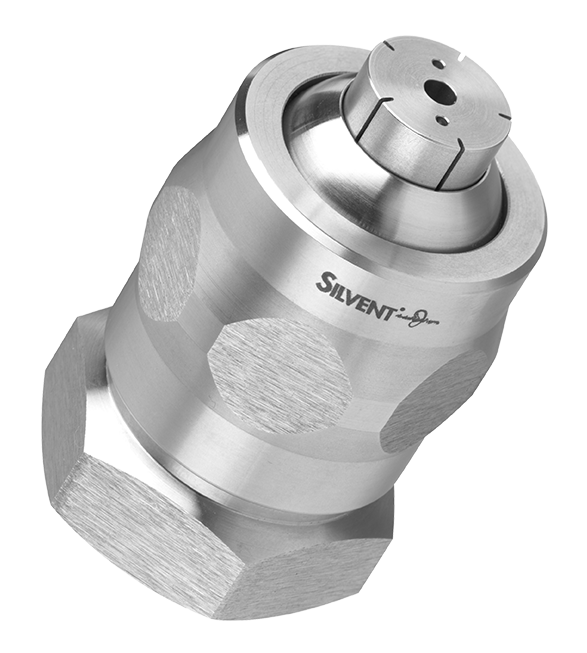

SILVENT 703 L is a stainless steel Laval nozzle. Compressed air is optimally used in this air nozzle, which introduced a whole new dimension to blowing technology. The effect is achieved by surrounding a core of air traveling at supersonic speed with a protective sheath of air moving parallel to the central air jet. The core stream in the 703 L is generated by a Laval nozzle. The design of the nozzle converts all of the energy stored in the compressed air into kinetic energy without permitting the air jet to expand laterally after it has passed through the nozzle. Because of the protective sheath of air, the surrounding air does not slow down the core stream, which can be used to full effect. The air flow prevents turbulence, thereby lowering noise levels.

Noise reduction 69%

Energy savings 49%

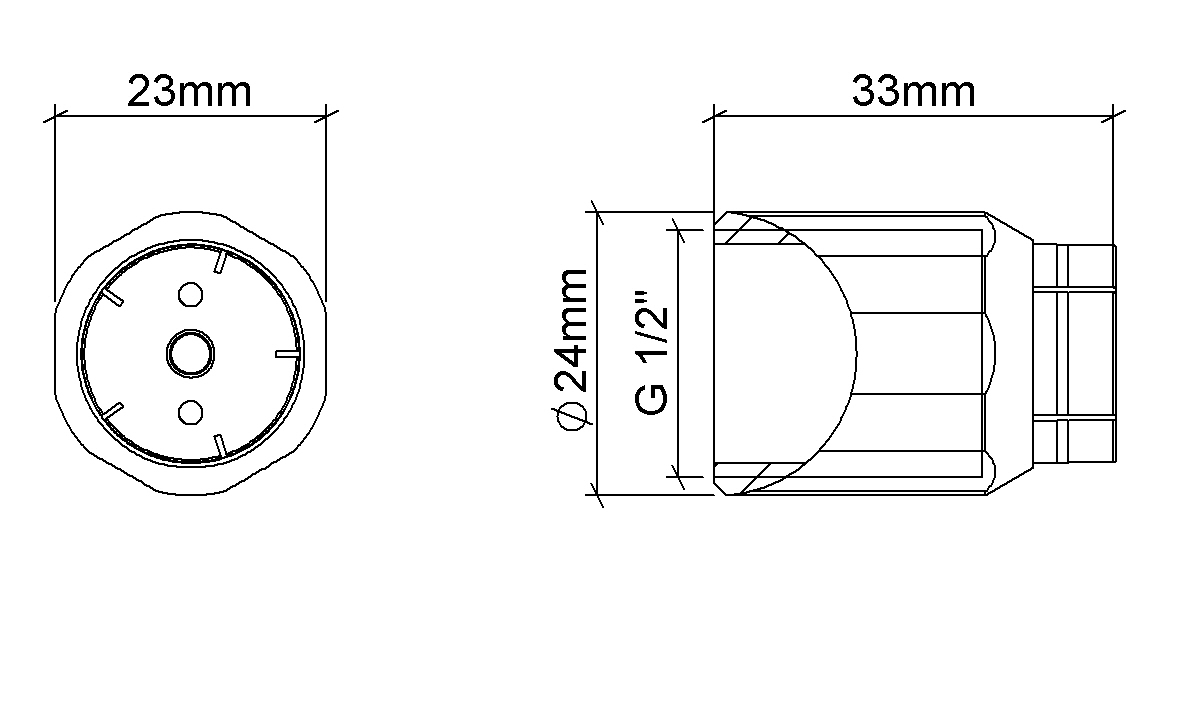

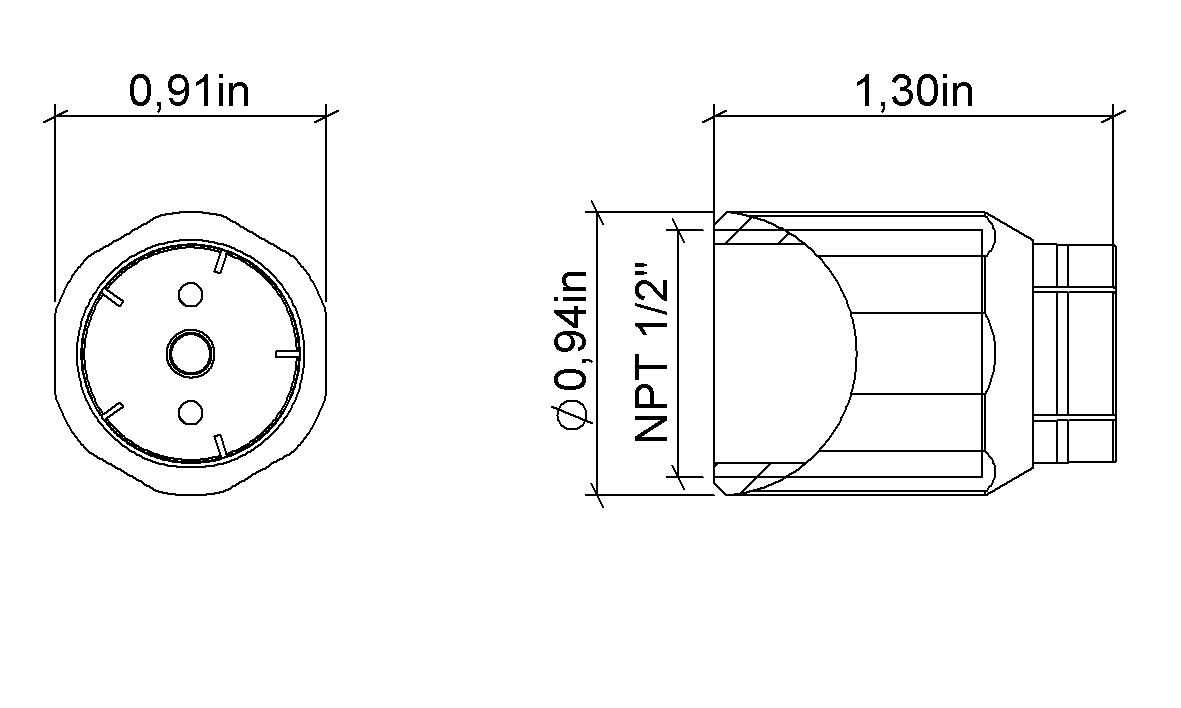

Technical specifications

See basic information about the technical data. Read more





Instructions for use

Read Silvent Group General Instructions for Use before you install the product.
