Item number: 09150149334, 09150249334

  • Stainless steel pipe blowing nozzle

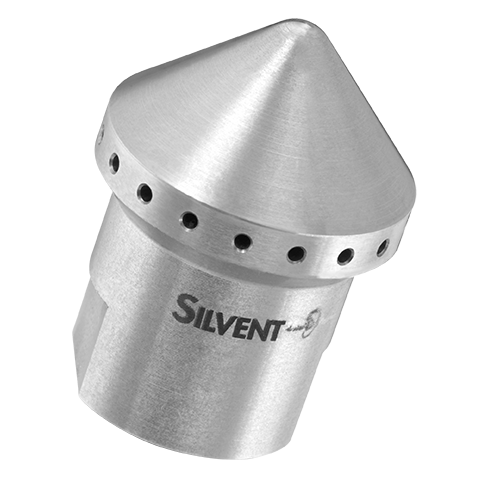

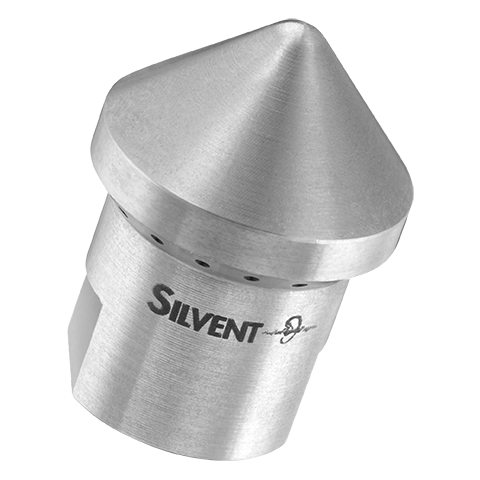

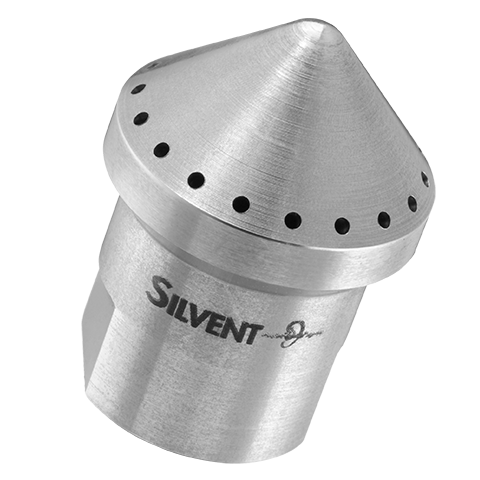

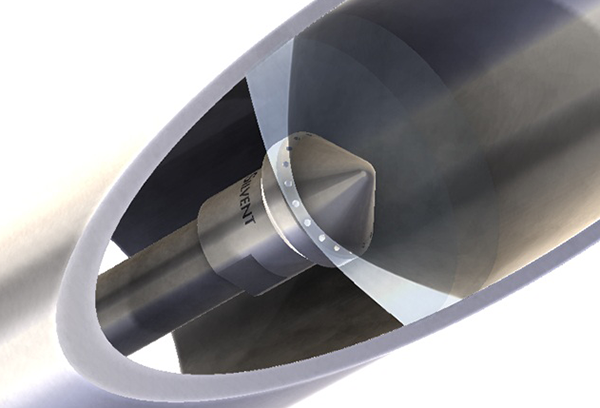

SILVENT 915: dispersion nozzle that generates a broad and circular air cone pattern. Designed for applications where air must be spread over a greater area at a short blowing distance. Works best when the blowing distance does not exceed 150 mm (6"). When blowing inside pipe and ducts the inside diameter should be between Ø 25 - 100 mm (1" - 4"). The standard exhaust angle is 45°. However, the design of the nozzle permits the angle of the exhaust holes to be modified. Upon request, angles of 90° or 135° are available. Low noise level and air consumption.

Noise reduction 16 dB(A)

Energy savings 17.1 scfm

Technical specifications

See basic information about the technical data. Read more



Instructions for use

Read Silvent Group General Instructions for Use before you install the product.

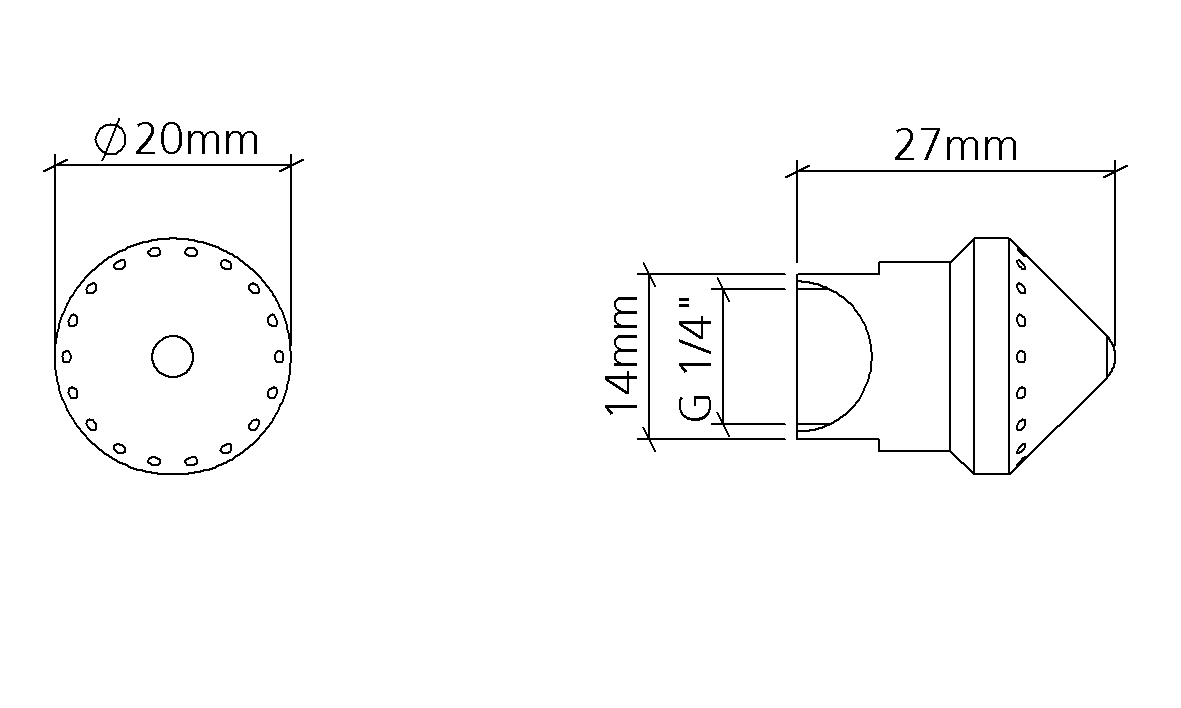

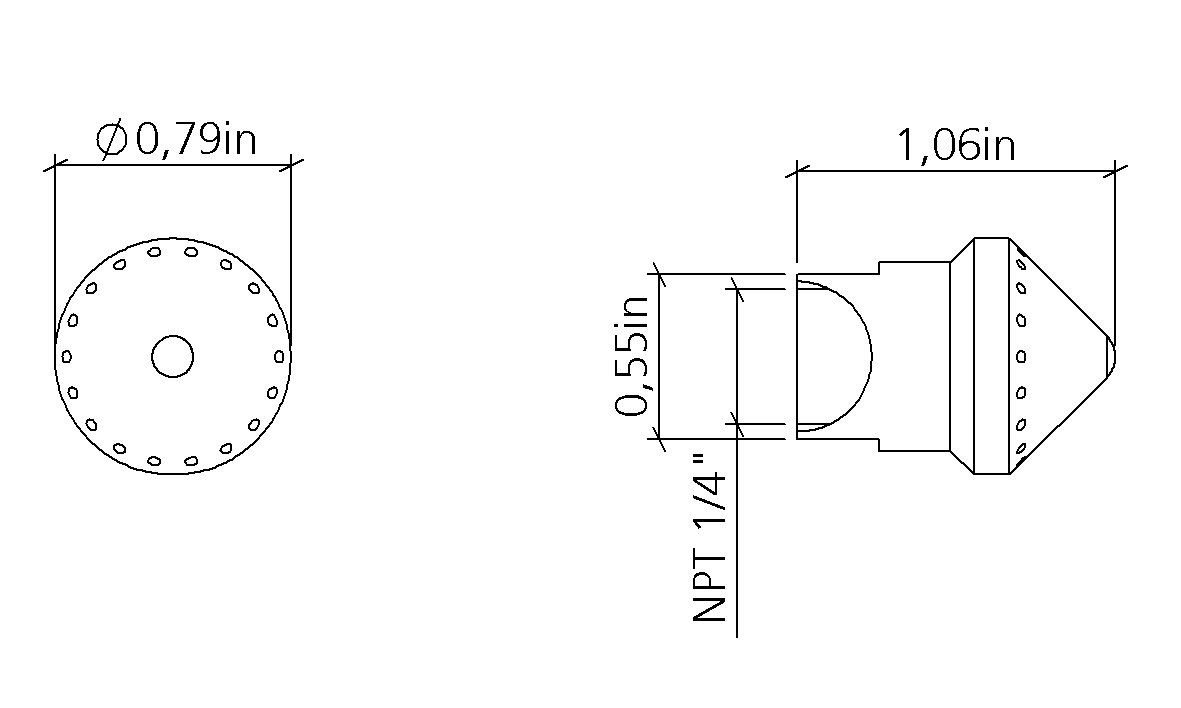

Principle sketch

Principle sketch SILVENT 915.
