AIR NOZZLE

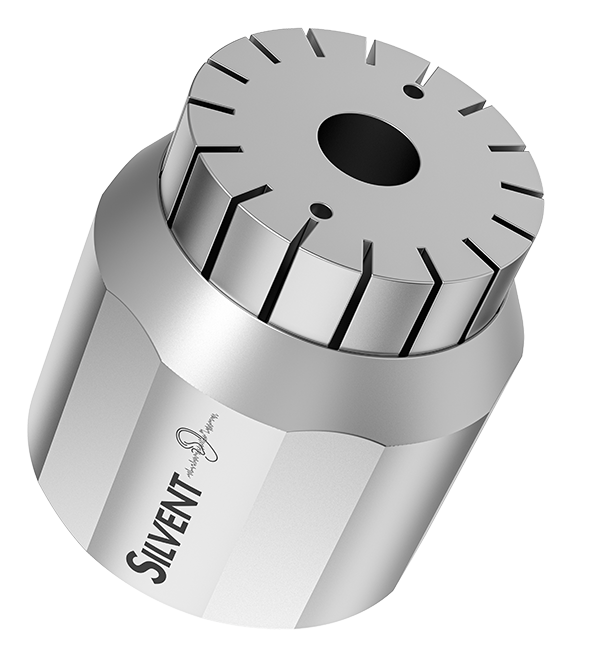

SILVENT 715 L

Item number: 07150149374, 07150249374

  • Stainless steel Laval nozzle

SILVENT 715 L: stainless steel Laval nozzle. Compressed air is utilized optimally in this nozzle, and its introduction constitutes a new dimension in blowing technology. The effect is achieved by surrounding a core of air traveling at supersonic speed with a protective film of air moving parallel to the central air jet. The central stream of air in the SILVENT 715 L is generated by a Laval nozzle. The design of the nozzle converts all of the energy stored in the compressed air into kinetic energy without permitting the air jet to expand laterally after it has passed through the nozzle. The protective sheath of air prevents the core stream from being slowed down by the surrounding air and allows it to be utilized at full effect. Turbulence is minimized, thereby lowering the sound level.

Noise reduction 20 dB(A)

Energy savings 169.0 scfm

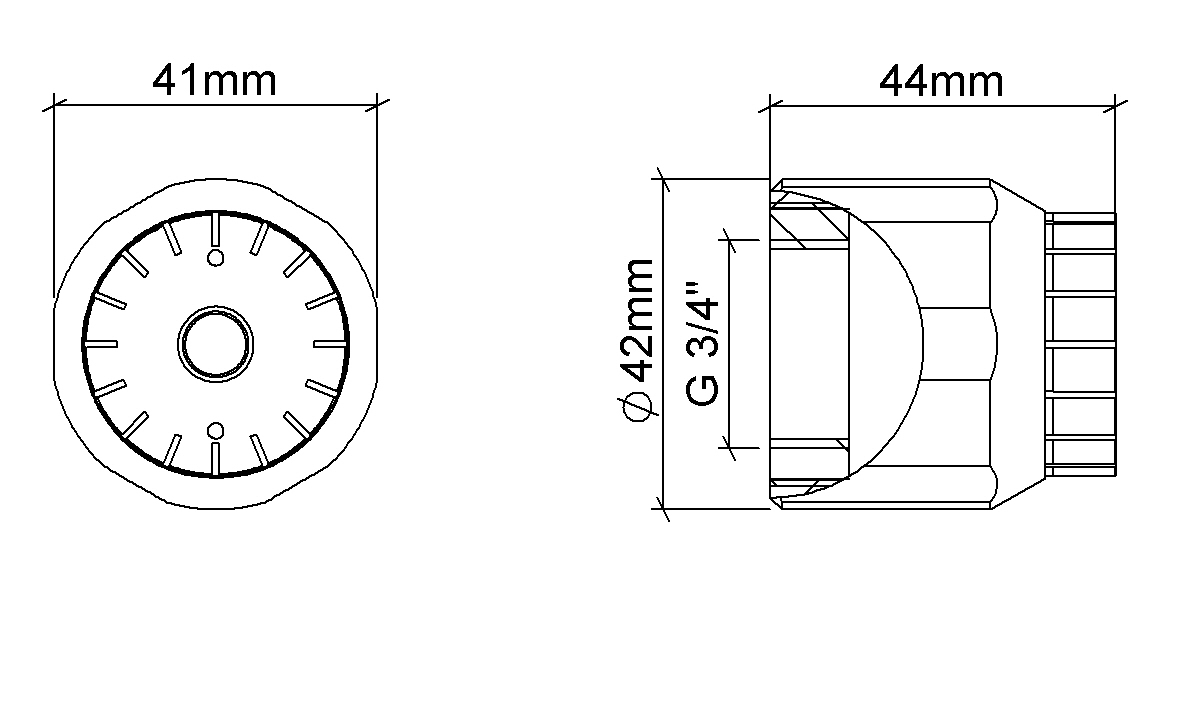

Technical specifications

See basic information about the technical data. Read more





Instructions for use

Read Silvent Group General Instructions for Use before you install the product.
