AIR NOZZLE

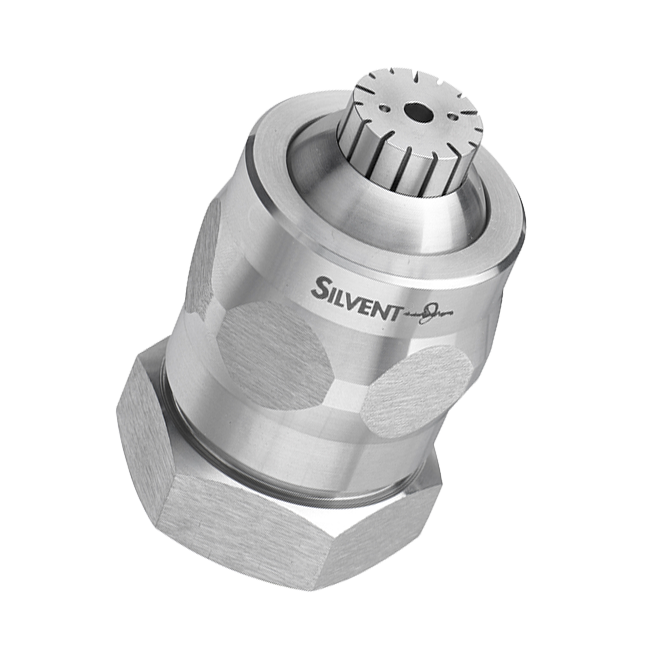

SILVENT 707 LA
Item number: 07070169311, 07070269311
SILVENT 707 LA: adjustable variation of 707 L. Allows up to 30° blowing angle adjustment from the centerline. Time required for installation and fine tuning of the blowing angle is decreased considerably. Same performance as 707 L.
Noise reduction [dB(A)] 22 dB(A)
Energy savings 85.9 scfm
Technical data
Replace open pipe Ø (mm)12
Blowing force (N)21.0
Air consumption (Nm³/h)120
Sound level (dB(A))94
Nozzle technologyLaval
Material (nozzle)1.4305 (303)
ConnectionG 1/2"
Connection typeFemale
Weight (g)481
Max temp (°C)400
Max op. pressure (MPa)1.0
Benefits when replacing an open pipe
Replace open pipe Ø (mm)12
Noise reduction [dB(A)]22 [dB(A)]78%
Energy savings146 [Nm³/h]55%
Material specification: EN 1.4305
Blowing properties at different pressures
Pressure (kPa)
2004006008001000
Blowing force (N)
9.016.925.033.240.9
Air consumption (Nm³/h)
60.999.8139.1176.9219.8
Sound level (dB(A))
87.892.395.197.098.6
Blowing coverage (mm)
95
140
190
235
50
100
200
300
Technical data
Replace open pipe Ø (inch)1/2
Blowing force4.6 lbs
Air consumption (scfm)70.6
Sound level (dB(A))94
Nozzle technologyLaval
Material (nozzle)1.4305 (303)
ConnectionNPT 1/2"
Connection typeFemale
Weight (lbs)1.060
Max temp (°F)752
Max op. pressure (psi)145
Benefits when replacing an open pipe
Replace open pipe Ø (inch)1/2
Noise reduction [dB(A)]22 [dB(A)]78%
Energy savings85.9 [scfm]55%
Material specification: EN 1.4305
Blowing properties at different pressures
Pressure (psi)
406080100120
Blowing force (oz)
44.363.281.5102.1120.2
Air consumption (scfm)
46.860.676.190.9109.1
Sound level (dB(A))
91.092.794.495.396.7
Blowing coverage (inch)
3.74
5.51
7.48
9.25
2
4
8
12
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
