AIR KNIFE
SILVENT 302 L
Item number: 03020169156, 03020269156
- Air curtain (zinc)
SILVENT 302 L - 306 L: with 209 L nozzles. For applications that require a curtain of air across a broad surface. Typical areas of application include air cleaning, curtains around doors and entrances, paint drying, cleaning of conveyor belts, plywood sheets etc.

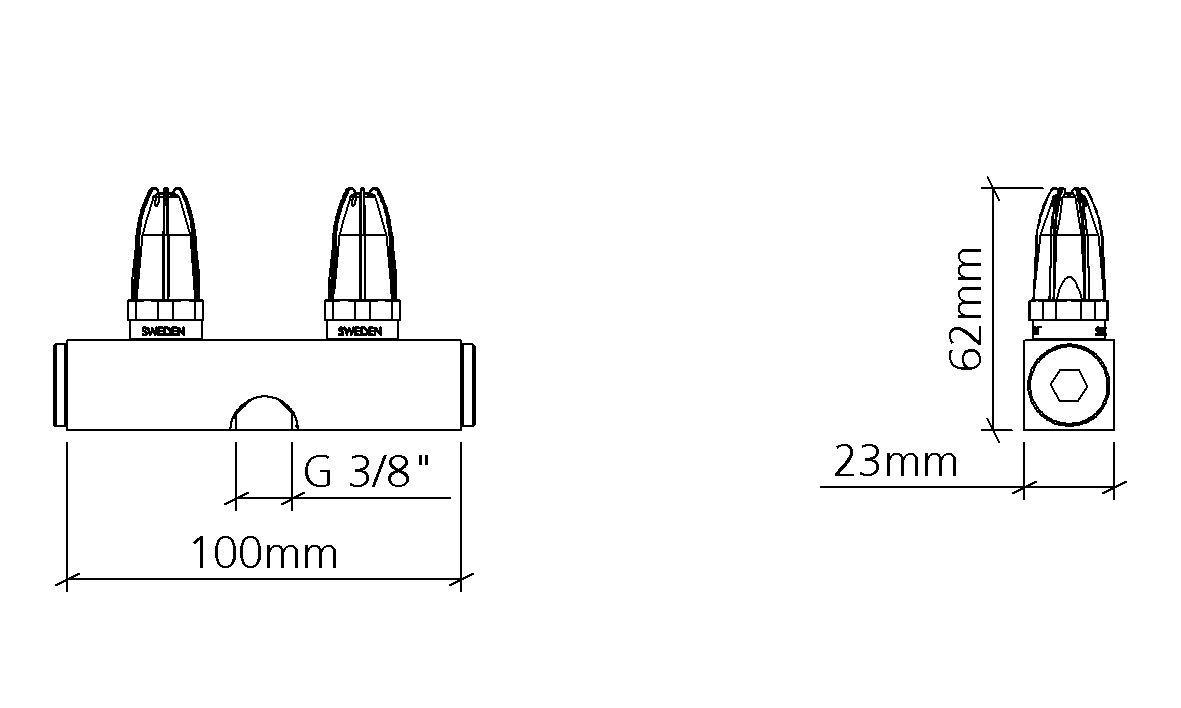

Technical data
Blowing force (N)6.7
Air consumption (Nm³/h)34
Sound level (dB(A))81
Nozzle technologyLaval
Material (nozzle)Zn
ConnectionG 3/8"
Connection typeFemale
Weight (g)224
Max temp (°C)70
Max op. pressure (MPa)1.0
Material specification: EN AW 6063, Zn ZP0410, EN 1.4305, CW614N, NBR
Blowing properties at different pressures
Pressure (kPa)
2004006008001000
Blowing force (N)
2.85.48.010.613.6
Air consumption (Nm³/h)
17.027.640.252.864.4
Sound level (dB(A))
73.078.581.786.089.0
Blowing coverage (mm)
Air knife
Blowing dist.
Blowing dist.90
115
165
215
50
100
200
300

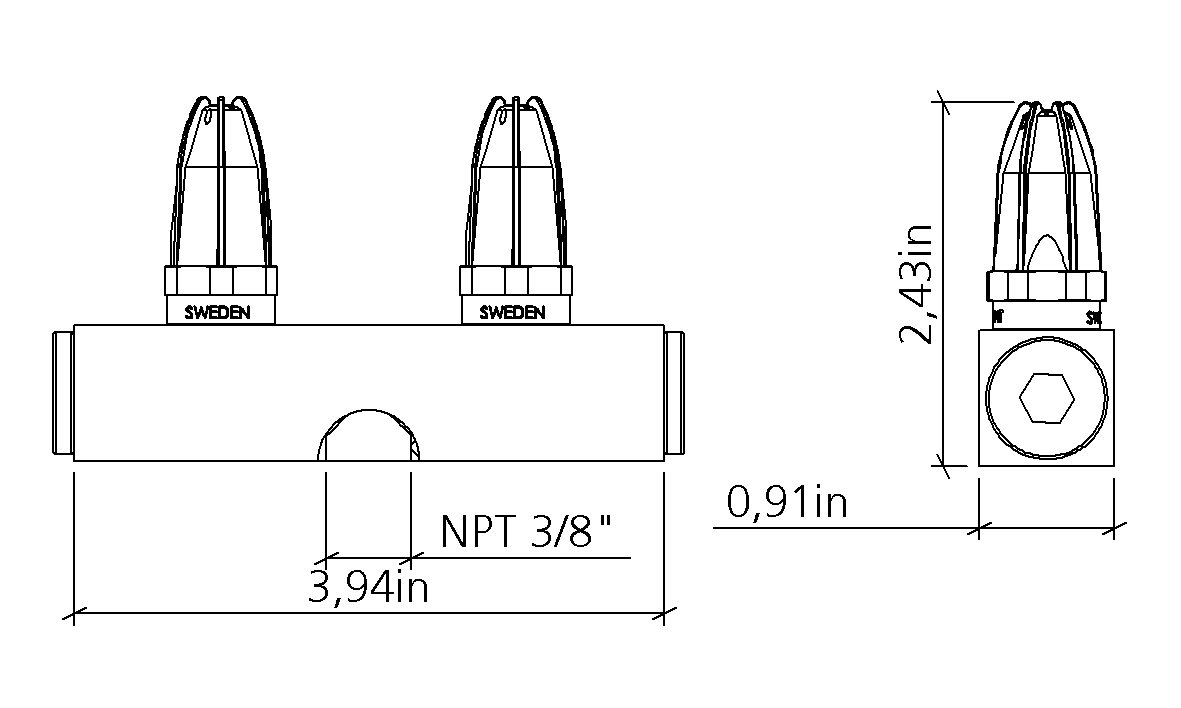

Technical data
Blowing force (N)1.5 lbs
Air consumption (scfm)20.0
Sound level (dB(A))81
Nozzle technologyLaval
Material (nozzle)Zn
ConnectionNPT 3/8"
Connection typeFemale
Weight (lbs)0.494
Max temp (°F)158
Max op. pressure (psi)145
Material specification: EN AW 6063, Zn ZP0410, EN 1.4305, CW614N, NBR
Blowing properties at different pressures
Pressure (psi)
406080100120
Blowing force (oz)
13.820.226.032.640.0
Air consumption (scfm)
13.016.822.027.232.0
Sound level (dB(A))
75.578.881.184.687.3
Blowing coverage (inch)
Air knifeBlowing dist.
Blowing dist.3.54
4.53
6.50
8.46
2
4
8
12
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
