Our air nozzles, air knives and air blow guns are designed to reduce sound levels and improve the efficiency of blowing with compressed air.
Blowing with compressed air is common in industry when cleaning, drying, cooling, sorting or transporting objects. Silvent air nozzles are used in fixed installations and make efficient use of compressed air. All Silvent air nozzles feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Air knives are most commonly used to blow away liquids, grime, airborne debris, etc. from surfaces or objects. Silvent air knives create a broad and effective flow of air that produces a pneumatic scraping effect without mechanical contact. All Silvent air knives feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Manual blowing with compressed air is common in industry when cleaning, drying or cooling objects. Silvent air blow guns make efficient use of compressed air. All Silvent air blow guns feature the optimal combination of high blowing force, low energy consumption and low noise levels, at the same time as they are ergonomically designed for professional use.
The noise from compressed air valves is extremely hazardous, but equipping valve discharge ports with pneumatic mufflers often causes operational disturbances. Silvent pneumatic mufflers have integrated warning indicators. The technology basically entails that the pneumatic muffler itself sets the optimal combination of flow capacity and noise suppression thanks to the dynamic internal filter, which subsequently minimizes operational disturbances and eliminates clogging.
To optimize blowing, it is sometimes necessary to be able to make pressure or blowing angle adjustments, for example. In other cases protection against airborne debris may be needed. Silvent has different types of accessories for easily performing various blowing tasks, optimally and safely.

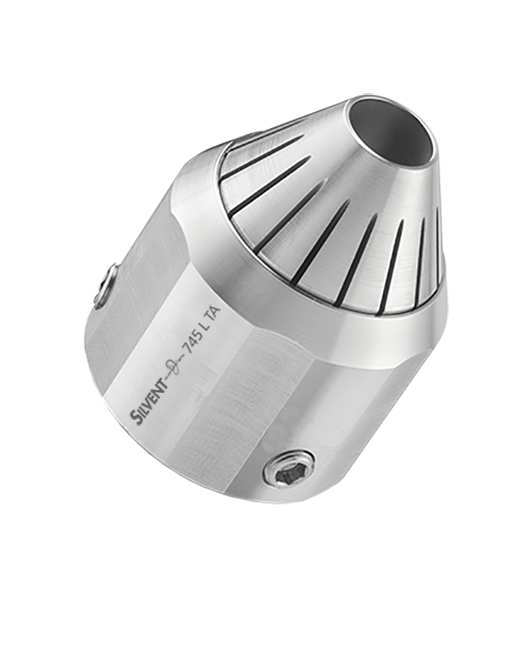

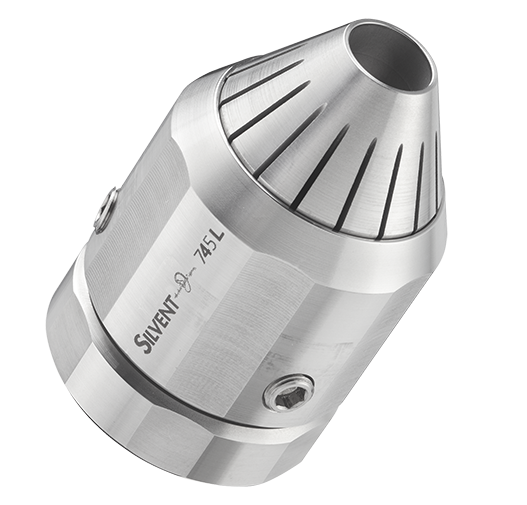

SILVENT 745 L is a stainless steel Laval nozzle that optimally utilizes the compressed air, generating very high and concentrated blowing force. The effect is achieved by surrounding a core of air traveling at supersonic speed with a protective film of air moving parallel to the core stream.
The core stream of air in the SILVENT 745 L is generated by a Laval nozzle. The shape of the nozzle, in combination with compact and aerodynamic design, converts all of the energy stored in the compressed air into directed concentrated kinetic energy. The surrounding sheath of air protects the core stream and allows it to be utilized at full effect for a longer distance.
The shape of the nozzle also reduces turbulence, thereby lowering the noise level. The nozzle is developed for use in industries where extremely high and concentrated impact force is required, for example in hot rolling steel mills and paper mills.
Material specification: EN 1.4305
See basic information about the technical data. Read more
Read Silvent Group General Instructions for Use before you install the product.
